CoreWeave Weave Guardrails Integration

​

What is the CoreWeave Weave Toxicity Scorer?

​

Key Features of the Weave Scorer on TrueFoundry

1. Local toxicity classification on inbound user messages and outbound assistant responses - no external service calls, no LLM round-trip per request.
2. Two operations per direction: a Validate rail that blocks toxic content, and a Mutate rail that masks it with a fixed placeholder.
3. Per-request threshold tuning via the dashboard Config JSON (total_threshold, category_threshold) - adjust sensitivity without redeploying.
4. Fast cold start: the ~550 MB Celadon model is baked into the Docker image at build time, so the pod starts warm and avoids a multi-minute HuggingFace download stall.

​

Architecture

• {"verdict": true} - allow
• {"verdict": false, "message": "..."} - block

• {"verdict": true, "transformed": false, "result": <original body>} - pass through unchanged
• {"verdict": true, "transformed": true, "result": <modified body>} - the gateway replaces the in-flight body with result

​

Prerequisites

• A TrueFoundry workspace you can deploy services into.
• The model FQN you want to protect (e.g. openai-main/gpt-4o-mini).
• A cluster with a configured base host (visible at Integrations → Clusters → <cluster>).

​

Integration Steps

1

Clone the wrapper repository

Clone the integration repo and switch to the CoreWeave Weave folder:

git clone https://github.com/truefoundry/integrations-custom-guardrails
cd integrations-custom-guardrails/integrations/coreweave-weave

2

Configure environment variables

Copy .env.example to .env and fill in the values. You will reference one TrueFoundry secret that you create in the next step - get its FQN from Platform → Secrets after creating it.

.env

# Wrapper auth - the gateway sends this as `Authorization: Bearer ...` when calling the wrapper.
WRAPPER_API_KEY=<generate with `python -c "import secrets; print(secrets.token_urlsafe(32))"`>

# Server runtime
PORT=8000
LOG_LEVEL=info

# Weave scorer runtime (cpu by default; "cuda" on a GPU node)
WEAVE_TOXICITY_DEVICE=cpu

# Deploy-time only
TFY_SERVICE_NAME=coreweave-weave-guardrails-tfy
TFY_WORKSPACE_FQN=<cluster>:<workspace>
TFY_PUBLIC_HOST=ml.<cluster>.truefoundry.cloud
TFY_PUBLIC_PATH=/coreweave-weave-guardrails-tfy
# Tenant-scoped, colon-separated form: tfy-secret://<tenant>:<secret-group>:<secret-key>
WRAPPER_API_KEY_SECRET_FQN=tfy-secret://<tenant>:coreweave-weave-guardrails-tfy:wrapper-api-key

Generate WRAPPER_API_KEY with python -c "import secrets; print(secrets.token_urlsafe(32))". The gateway will send this value as Authorization: Bearer … when calling the wrapper.

3

Create a TrueFoundry secret

Navigate to Platform → Secrets and create a Secret Group named coreweave-weave-guardrails-tfy with one secret:

Secret Name	Value
wrapper-api-key	The same random string you put in .env as WRAPPER_API_KEY.

Copy the secret’s FQN and confirm the entry in .env (WRAPPER_API_KEY_SECRET_FQN) matches. The FQN is tenant-scoped and colon-separated, for example tfy-secret://tfy-eo:coreweave-weave-guardrails-tfy:wrapper-api-key.

4

Deploy the wrapper service

Install the TrueFoundry CLI, log in, and deploy:

pip install -U truefoundry
tfy login
python deploy.py --wait

The first build is slow because the Dockerfile pre-downloads the ~550 MB Celadon model so the deployed pod starts warm. Subsequent builds use TrueFoundry’s image layer cache and are much faster. After the build, the pod takes a few seconds to load and warm up the scorer before readiness passes.

Verify the service is healthy:

curl -s https://ml.<cluster>.truefoundry.cloud/coreweave-weave-guardrails-tfy/health
# {"status":"ok"}

5

Register the Custom Guardrail Configs in TrueFoundry

Navigate to AI Gateway → Guardrails → + Add New Guardrails Group.

1. Group name: coreweave-weave
2. Description (optional): CoreWeave Weave toxicity scorer (Celadon): validate + mutate rails
3. Click + Add Guardrail Config → Custom Guardrail Config for each rail you want. The four endpoints are independent - register only the ones you need.

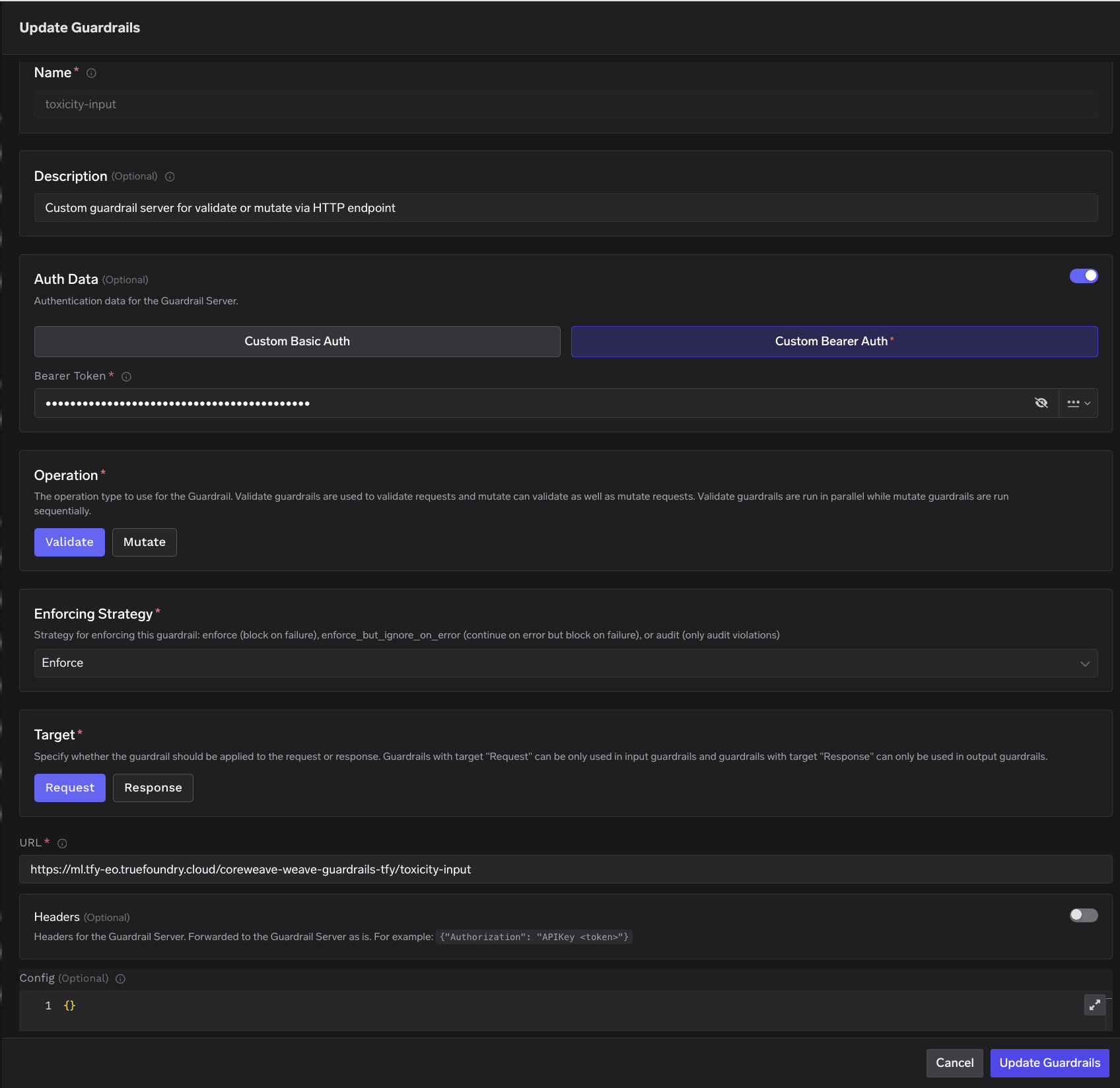

For each rail, use the same template:

Field	Value
Name	the rail name from the table below (e.g. toxicity-input)
Operation	Validate or Mutate per the table
URL	https://ml.<cluster>.truefoundry.cloud/coreweave-weave-guardrails-tfy/<suffix>
Auth Data	Custom Bearer Auth, token = the wrapper-api-key secret value
Headers	(empty)
Config	{} (or override thresholds - see Tuning Thresholds)
Enforcing Strategy	Enforce But Ignore On Error (recommended)

The four rails to register:

Direction	Name	URL suffix	Operation	Behavior
Input	toxicity-input	/toxicity-input	Validate	Blocks the request on toxicity
Output	toxicity-output	/toxicity-output	Validate	Blocks the response on toxicity
Input	toxicity-input-mutate	/toxicity-input-mutate	Mutate	Masks the user message on toxicity
Output	toxicity-output-mutate	/toxicity-output-mutate	Mutate	Replaces the assistant response on toxicity

Save the group.

Pick Validate OR Mutate per direction - do not stack both on the same direction. The wrapper signals decisions on HTTP 200; real failures (scorer load error, wrapper crash) come as HTTP 5xx. With Enforce But Ignore On Error, transient outages pass through while real policy decisions still apply. Use Enforce for safety-critical rails where fail-closed is the right trade-off. See Custom guardrail response contract and Enforcing Strategy.

6

Apply the guardrail to traffic

There are two ways to route requests through the rails - pick based on whether you want every call to a model protected, or per-call opt-in.

• Pin to a model (every call protected)
• Per-request opt-in

Navigate to AI Gateway → Models → <model> → Guardrails tab → attach the coreweave-weave group → Save. Every caller of this model now passes through the rails.

Send the X-TFY-GUARDRAILS header on individual requests. Selector format is <group-name>/<config-name>. Pick validate or mutate per direction - do not stack both on the same direction.

from openai import OpenAI
import json

client = OpenAI(
    api_key="<TFY API key>",
    base_url="https://gateway.truefoundry.ai",
)

# Block on toxicity (validate rails)
resp = client.chat.completions.create(
    model="openai-main/gpt-4o-mini",
    messages=[{"role": "user", "content": "What is the capital of France?"}],
    extra_headers={
        "X-TFY-GUARDRAILS": json.dumps({
            "llm_input_guardrails":  ["coreweave-weave/toxicity-input"],
            "llm_output_guardrails": ["coreweave-weave/toxicity-output"],
        }),
    },
)

To mask instead of block, use the mutate rails:

"X-TFY-GUARDRAILS": json.dumps({
    "llm_input_guardrails":  ["coreweave-weave/toxicity-input-mutate"],
    "llm_output_guardrails": ["coreweave-weave/toxicity-output-mutate"],
})

7

Test end-to-end

Issue two test calls through the gateway - one that should succeed and one that should be blocked:

GW=https://gateway.truefoundry.ai
TFY_KEY=<your TFY API key>
MODEL=openai-main/gpt-4o-mini

# Should succeed with a normal completion
curl -s "$GW/chat/completions" \
  -H "Authorization: Bearer $TFY_KEY" -H "Content-Type: application/json" \
  -H 'X-TFY-GUARDRAILS: {"llm_input_guardrails":["coreweave-weave/toxicity-input"],"llm_output_guardrails":["coreweave-weave/toxicity-output"]}' \
  -d "{\"model\":\"$MODEL\",\"messages\":[{\"role\":\"user\",\"content\":\"What is the capital of France?\"}]}"

# Should be blocked: guardrail_checks_failed with the toxicity verdict
curl -s "$GW/chat/completions" \
  -H "Authorization: Bearer $TFY_KEY" -H "Content-Type: application/json" \
  -H 'X-TFY-GUARDRAILS: {"llm_input_guardrails":["coreweave-weave/toxicity-input"]}' \
  -d "{\"model\":\"$MODEL\",\"messages\":[{\"role\":\"user\",\"content\":\"I hate <group> and they should all be eliminated.\"}]}"

A successful block returns:

{
  "status": "failure",
  "message": "Input Guardrail checks failed for integrations: [coreweave-weave/toxicity-input] ...",
  "error": { "type": "guardrail_checks_failed", "code": "400" },
  "guardrail_checks": {
    "input_guardrails": [{
      "guardrail_integration": "coreweave-weave/toxicity-input",
      "result": "failed",
      "data": {
        "verdict": false,
        "explanation": "WeaveToxicity (input): blocked on Violence (score=3, total=4, thresholds={'total': 5, 'category': 3})",
        "guardrailUrl": "https://..."
      }
    }]
  }
}

The block message names the top-scoring toxicity category and is preserved in guardrail_checks.input_guardrails[0].data.explanation. With the mutate rails, the request instead completes normally but the toxic content is replaced ([message removed by safety filter] for input, I can't help with that. for output).

​

Tuning Thresholds

{
  "total_threshold": 5,
  "category_threshold": 3
}

• Lower category_threshold to 2 to catch milder harassment (e.g. "you are a worthless idiot" scores Violence=2), at the cost of greeting false positives.
• Lower to 1 to catch veiled threats too (e.g. "I hope someone breaks her face" scores Violence=1), with more noise overall.

​

Known Accuracy Gaps

• Short capitalized greetings false-positive at score 2. "Hi" and "Hey" score Race/Origin=2; "Hello", "Hi there", and lowercase "hi" score 0. This motivated the category_threshold=3 default.
• Mild harassment scores 2 and passes the default. "you are a worthless idiot" and similar score Violence=2 and pass at category_threshold=3. Real hate / death threats / overt slurs score 3+ and block. Set {"category_threshold": 2} per-rail if you need the milder band to block too.
• Veiled threats score 1. Phrases like "I hope someone breaks her face" score Violence=1, below both defaults. Set {"category_threshold": 1} to catch them.
• Toxicity only. Celadon does not detect prompt injection, secret leakage, or PII. For PII use the Guardrails AI integration.
• Label-space quirk. The five dimensions are conceptual, not orthogonal - e.g. homophobic content tends to score Race/Origin rather than Gender/Sex. The block message names the top-scoring dimension, which is informative but not always semantically tidy.

​

Troubleshooting

curl -sS -X POST https://ml.<cluster>.truefoundry.cloud/coreweave-weave-guardrails-tfy/toxicity-input \
  -H "Authorization: Bearer $WRAPPER_API_KEY" -H "Content-Type: application/json" \
  -d '{"requestBody":{"messages":[{"role":"user","content":"<test prompt>"}]},"context":{"user":{"subjectId":"u1","subjectType":"user"}}}'

curl -sS https://ml.<cluster>.truefoundry.cloud/coreweave-weave-guardrails-tfy/debug/loaded-config \
  -H "Authorization: Bearer $WRAPPER_API_KEY" | jq

​

Known Limitations

• Toxicity classification only. No prompt injection, PII, or secrets detection. Layer with other guardrails (e.g. Guardrails AI) for defense in depth.
• Fixed-string mutation. Celadon is a scorer, not a rewriter, so the Mutate rails replace toxic content with a fixed placeholder rather than a sanitized rewrite of the original.
• No streaming-aware guardrails. The TrueFoundry custom-guardrail contract is buffered: the gateway holds the full assistant response before calling the output rail. Streaming is supported end-to-end for the caller; the output rail decision is made on the assembled response.
• In-memory state is per-replica. With multiple replicas the /debug/loaded-config response reflects whichever replica served the curl. After a deploy, retry the curl a few times to surface heterogeneity.

​
