Launch Notebook with Spark

TrueFoundry Spark Notebooks provide a JupyterLab environment with a dedicated Spark Connect server running alongside it. This gives you an interactive PySpark and Scala environment backed by a fully managed Spark cluster on Kubernetes — with no external infrastructure to set up. Use Spark Notebooks when you need to:

Explore and transform large datasets interactively
Prototype Spark ETL pipelines before productionizing them
Run distributed computations without managing Spark infrastructure

Getting Started

To launch a Spark Notebook, select Jupyter Notebook with Spark as the workbench type in the deployment form and configure the Spark cluster settings.

Create a new Notebook

Navigate to your workspace and click New Notebook. Select the Jupyter Notebook with Spark type.

Choose a Spark image

Select the pre-built Spark image or provide a custom extended image.

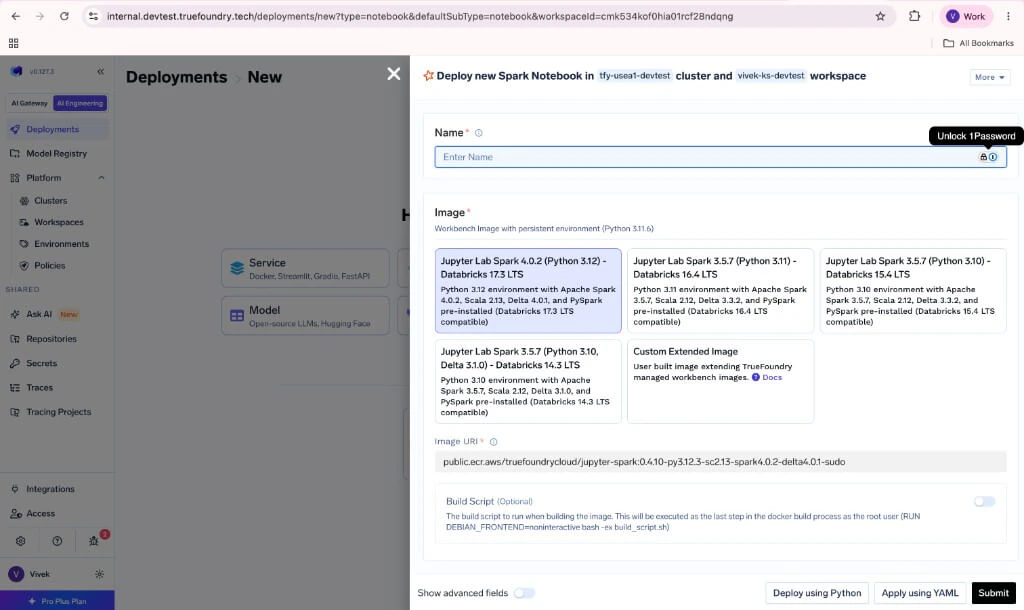

Image selection and notebook configuration

Configure Spark cluster resources

Set the driver resources, executor count (or dynamic scaling), and executor resources.

Spark Cluster Config — driver resources and executor instances

Launch

Click deploy. The notebook and Spark Connect server will start together. A SparkSession is automatically available in every Python and Scala notebook cell.

Pre-built Images

Multiple pre-built images are available, each aligned to a Databricks LTS runtime version:

Image	Spark	Python	Scala	Delta Lake	Databricks LTS
`jupyter-spark:0.4.10-py3.12.3-sc2.13-spark4.0.2-delta4.0.1-sudo`	4.0.2	3.12	2.13	4.0.1	17.3
`jupyter-spark:0.4.10-py3.11.14-sc2.12-spark3.5.7-delta3.3.2-sudo`	3.5.7	3.11	2.12	3.3.2	16.4
`jupyter-spark:0.4.10-py3.10.16-sc2.12-spark3.5.7-delta3.3.2-sudo`	3.5.7	3.10	2.12	3.3.2	15.4
`jupyter-spark:0.4.10-py3.10.16-sc2.12-spark3.5.7-delta3.1.0-sudo`	3.5.7	3.10	2.12	3.1.0	14.3

All images are hosted under public.ecr.aws/truefoundrycloud/. For example, the full URI for the Databricks 17.3 LTS image is public.ecr.aws/truefoundrycloud/jupyter-spark:0.4.10-py3.12.3-sc2.13-spark4.0.2-delta4.0.1-sudo.

All Jupyter Spark images are available at https://gallery.ecr.aws/truefoundrycloud/jupyter-spark

The image includes:

PySpark with Spark Connect client
Delta Lake for ACID table operations
Scala kernel (Almond) pre-configured with Spark Connect JARs
Conda for managing multiple Python environments

Using Spark in the Notebook

Spark is preconfigured in the notebook and available via the spark variable.

# `spark` is already available — no setup needed
df = spark.range(1000000).toDF("id")
df.filter(df.id % 2 == 0).count()

// SparkSession is pre-initialized in the Scala kernel
val df = spark.range(1000000).toDF("id")
df.filter($"id" % 2 === 0).count()

The notebook connects to the Spark Connect server via the SPARK_CONNECT_URL environment variable, which is automatically set to point to the co-located Spark Connect server.

The startup script retries the connection up to 5 times (configurable via SPARK_INIT_RETRIES). If the Spark Connect server hasn’t started yet, the session will be created once it becomes available.

Using Delta Lake

Delta Lake is pre-installed, enabling ACID transactions on your data lake:

df.write.format("delta").mode("overwrite").save("s3a://my-bucket/delta-table/")

delta_df = spark.read.format("delta").load("s3a://my-bucket/delta-table/")
delta_df.show()

Spark Cluster Configuration

The Spark cluster is configured through the Spark Cluster Config section in the deployment form.

Driver Resources

The Spark Connect server (driver) runs as a separate pod. Configure its resources based on the complexity of your query plans and the volume of data collected to the driver.

number

default:"1"

Minimum CPU cores for the driver.

number

default:"3"

Maximum CPU cores for the driver.

number

default:"4000"

Minimum memory in MB for the driver.

number

default:"6000"

Maximum memory in MB for the driver.

Executor Instances

Choose between Fixed and Dynamic executor scaling:

Fixed Instances
Dynamic Scaling

A fixed number of executor pods are launched when the Spark cluster starts.

Parameter	Default	Description
`count`	2	Number of executor pods to start

Executors scale up and down based on workload. Idle executors are removed and new ones are added when tasks are queued.

Parameter	Default	Description
`min`	1	Minimum number of executors
`max`	4	Maximum number of executors

Executor Resources

Each executor pod gets its own resource allocation:

number

default:"2"

CPU cores per executor.

number

default:"4000"

Memory in MB per executor.

number

default:"5000"

Ephemeral disk in MB per executor (used for shuffle data).

Spark Configuration Properties

Pass additional Spark configuration as key-value pairs. These are applied to the Spark Connect server and executors.

spark.sql.adaptive.enabled = true
spark.sql.shuffle.partitions = 200
spark.jars.packages = io.delta:delta-spark_2.12:3.3.2

Some internal configuration (e.g., spark.jars.ivy, connection timeouts, spark.connect packages) is managed automatically. User-supplied spark.jars.packages values are merged with the internal ones.

Spark Image

By default, the Spark Connect server and executors use the apache/spark:4.0.2 image. You can override this with a custom Spark image in the Advanced section of the Spark Cluster Config. The image must have Spark pre-installed and be compatible with the Kubernetes executor model.

Environment Variables

The following environment variables are automatically set or can be overridden:

Variable	Default	Description
`SPARK_CONNECT_URL`	Auto-generated	gRPC URL of the Spark Connect server
`SPARK_INIT_RETRIES`	`5`	Number of connection retries at startup
`SPARK_INIT_RETRY_DELAY`	`3`	Seconds between retries

You can also add custom environment variables (plain text or secret references) in the deployment form for your application code.

Service Account

If your Spark jobs need to access cloud storage (S3, GCS, ADLS) or other cloud services, assign a Kubernetes service account with the appropriate IAM role to the notebook. The Spark Connect server and executors inherit this service account for cloud access. Configure the service account in the Advanced section of the deployment form.

Custom Images

You can build custom Spark notebook images by extending the pre-built base images:

FROM public.ecr.aws/truefoundrycloud/jupyter-spark:0.4.10-py3.11.14-sc2.12-spark3.5.7-delta3.3.2-sudo

# Install additional pip packages
RUN python3 -m pip install --no-cache-dir \
    koalas \
    mlflow \
    scikit-learn

# Install apt packages
USER root
RUN DEBIAN_FRONTEND=noninteractive apt-get update && \
    apt-get install -y --no-install-recommends graphviz && \
    apt-get clean && rm -rf /var/lib/apt/lists/*
USER jovyan

Do not overwrite the ENTRYPOINT or CMD instructions. These are built into the base images and are critical for correct operation.

Build and push the image to a registry integrated with TrueFoundry, then select it as a custom image when creating the notebook.
