TrueFoundry lets your team sign in through your existing Identity Provider (IdP) using OpenID Connect (OIDC) or SAML 2.0, and (for supported IdPs) keep users and teams in sync via SCIM provisioning. Any IdP that speaks OIDC or SAML 2.0 will work — Microsoft Entra ID (Azure AD), Okta, Google Workspace, Keycloak, JumpCloud, OneLogin, Auth0, PingOne, AD FS, Rippling, and others.

Deployment models

There are two ways to wire your IdP up to TrueFoundry. Most customers use Option 1; Option 2 exists for regulated, fully self-contained environments.

Option 1 — TrueFoundry Auth Server + your IdP

Default. Available on SaaS and on-prem. TrueFoundry’s central auth server (login.truefoundry.com) brokers the SSO flow with your IdP.

Option 2 — Direct IdP (no TrueFoundry Auth Server)

On-prem only, available on the higher-tier Enterprise plan. Your control plane talks to your IdP directly — nothing leaves your environment.

Option 1 — TrueFoundry Auth Server + your IdP (default)

The TrueFoundry Auth Server (login.truefoundry.com) sits between your control plane and your IdP. When a user signs in, the control plane hands off to the auth server, which then hands off to your IdP. After the IdP authenticates the user, the auth server validates the response, creates or updates the user record, and returns tokens to the control plane.

High-level auth flow with the TrueFoundry Auth Server

Why this is the default

Works identically on SaaS and on-prem installations.
TrueFoundry handles OIDC/SAML quirks, key rotation, and SCIM endpoints centrally.
Only the user’s email and a request count are sent to login.truefoundry.com — used for licensing and tenant routing.
Lets you swap IdPs without redeploying the control plane.

Detailed authentication flow (step-by-step with request/response examples)

Curious about exactly what happens during a login? Here are all the hops between the browser, control plane, TrueFoundry Auth Server, and your IdP.

Request Login Page

Browser initiates the OAuth flow by requesting the login page from the TrueFoundry Control Plane, with the redirect URL being the TrueFoundry Control Plane URL.

Example Request/Response

Request

GET /api/svc/v1/oauth2/authorize?tenantName={tenant_name}
    &controlPlaneURL=https%3A%2F%2Fyour.example.com
    &redirectURL=https%3A%2F%2Fyour.example.com%2Fauth%2Fcallback
HTTP/1.1
Host: your.example.com

Response

HTTP/1.1 200 OK
Content-Type: text/html; charset=utf-8
Content-Length: 100
Connection: keep-alive
Date: Fri, 27 Jun 2025 07:00:00 GMT
  {
    "authorizationEndpoint":"https://login.truefoundry.com/oauth2/authorize?client_id={application_id}&response_type=code&scope=openid+email+profile+offline_access&redirect_uri=https%3A%2F%2Fyour.example.com%2Fauth%2Fcallback"
  }

Send Login Page

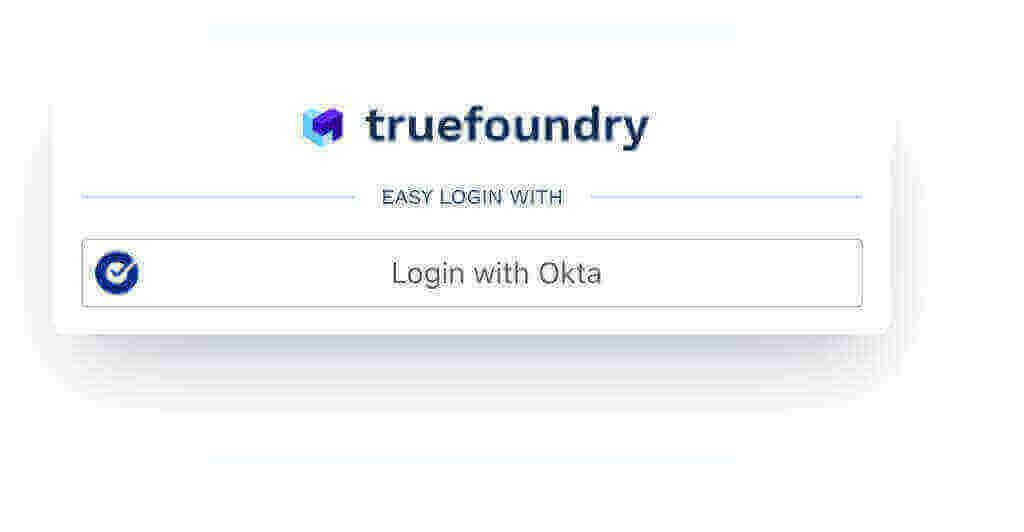

Browser redirects to the Login Page URL powered by the . The login page provides an interactive form for the user to choose the type of authentication, such as password-based or SSO.

Redirect to SSO Identity Provider page

On selecting SSO, the browser is redirected to the SSO Identity Provider’s login page with the redirect URL set to the .

Example Request/Response

Request

POST /oauth2/<client_id>/v1/authorize
HTTP/1.1
Host: example.sso.com
Content-Type: application/x-www-form-urlencoded
Origin: https://login.truefoundry.com
Body: login_hint=
      &scope=openid+groups+email
      &response_type=code
      &code_challenge_method=S256
      &redirect_uri=https%3A%2F%2Flogin.truefoundry.com%2Foauth2%2Fcallback
      &state={encoded_state}
      &client_id={client_id}
      &code_challenge={code_challenge}

Response

HTTP/1.1 302 Found
Cache-Control: no-cache, no-store
Pragma: no-cache
Server: nginx
Date: Fri, 27 Jun 2025 07:00:00 GMT
Location: https://login.truefoundry.com/oauth2/callback?code={authorization_code}&state={encoded_state}

All requests to the Identity Provider are signed using an RS256 key pair. For SAML, destination assertion is enabled, ensuring secure transfer of user authentication information between the SAML identity provider (IdP) and the TrueFoundry Auth Server (SP).

Redirect back to the TrueFoundry Auth Server with code

On successful authentication by the SSO Identity Provider, the browser redirects to the configured redirect URL (the ) with an authorization code. The auth server then exchanges this code with the IdP to fetch user information.

Example Request/Response

Request

GET /oauth2/callback?code={authorization_code}&state={encoded_state}
HTTP/1.1
Host: login.truefoundry.com

Response

HTTP/1.1 302 Found
Cache-Control: no-cache, no-store
Pragma: no-cache
Server: nginx
Date: Fri, 27 Jun 2025 07:00:00 GMT
Location: https://your.example.com/auth/callback?code={authorization_code}&userState=Authenticated

To protect data integrity and privacy, all data in transit to and from the TrueFoundry Control Plane or Auth Server is encrypted using TLS 1.2 or higher.

Validate & create user if it doesn't exist

The validates the response from the SSO Identity Provider and maps the user based on the email claim against the database, creating a new entry if one doesn’t already exist.

Example Request/Response

This step is performed by the and is not visible to the user.Get Token from SSO Identity Provider:

Request

POST /oauth2/{client_id}/v1/token
HTTP/1.1
Host: example.sso.com
Content-Type: application/x-www-form-urlencoded
Origin: https://login.truefoundry.com
Body: code={authorization_code}
      &grant_type=authorization_code
      &redirect_uri=https://login.truefoundry.com/oauth2/callback

Response

HTTP/1.1 200 OK
Content-Type: application/json
Date: Fri, 27 Jun 2025 07:00:00 GMT
  {
    "token_type" : "Bearer",
    "expires_in" : 3600,
    "access_token" : "{access_token}",
    "scope" : "groups openid email",
    "id_token" : "{id_token}"
  }

Get User information from SSO Identity Provider:

Request

GET /oauth2/{client_id}/v1/userinfo
HTTP/1.1
Host: example.sso.com
Authorization: Bearer {access_token}

Response

HTTP/1.1 200 OK
Content-Type: application/json
Date: Fri, 27 Jun 2025 07:00:00 GMT
  {
    "sub" : "{sso_user_id}",
    "email" : "example@example.com",
    "email_verified" : true,
    "groups" : ["{group_1}", "{group_2}"]
  }

Link user via email example@example.com to the user in the TrueFoundry Auth Server and redirect to the TrueFoundry Control Plane.

Any user deactivated from the platform is rejected at this step.

Redirect to TrueFoundry Control Plane with authorization code

On user validation, the redirects the browser to the TrueFoundry Control Plane with an authorization code.

Example Request/Response

Request

GET /auth/callback?code={authorization_code}&userState=Authenticated
HTTP/1.1
Host: your.example.com

Response

HTTP/1.1 200 OK
Date: Fri, 27 Jun 2025 07:00:00 GMT

Exchange code for tokens

The TrueFoundry Control Plane uses the code to request tokens from the .

Example Request/Response

Request

POST /api/svc/v1/oauth2/token
HTTP/1.1
Host: your.example.com
Content-Type: application/json
Origin: https://your.example.com
Body: {
        "tenantName":"{tenant_name}",
        "code":"{authorization_code}",
        "grantType":"authorization_code",
        "redirectURI":"https://your.example.com/auth/callback"
      }

Response

HTTP/1.1 201 Created
Date: Fri, 27 Jun 2025 07:00:00 GMT
Set-Cookie: accessToken=<access_token>; HttpOnly; Path=/; Max-Age=86400; Expires=Sat, 28 Jun 2025 07:00:00 GMT
Set-Cookie: refreshToken=<refresh_token>; HttpOnly; Path=/; Max-Age=604800; Expires=Thu, 03 Jul 2025 07:00:00 GMT

Return authentication tokens

On successful code validation, the responds with authentication tokens (an access token and a refresh token), signed by the auth server.

By default the access token is valid for 1 day and the refresh token for 7 days. Contact support to change these expiries.

Set tokens as HttpOnly cookies

The TrueFoundry Control Plane sets these authentication tokens as HTTP-only cookies in the browser. All further requests to the control plane carry these cookies and are used for authentication and authorization at the API server layer.

Option 2 — Direct IdP integration (no TrueFoundry Auth Server)

Available on on-prem deployments only, on the higher-tier Enterprise plan.

For tenants that cannot allow any authentication traffic to leave their environment, the control plane can talk to your OIDC or SAML IdP directly — login.truefoundry.com is not in the loop. User emails and request counts never leave your network. How it works

The control plane is configured at install time with your IdP’s OIDC issuer or SAML metadata (via servicefoundryServer.env in Helm values).
When a user logs in, the control plane redirects them straight to your IdP.
After the IdP authenticates, the user returns directly to the control plane — tokens are signed locally using a private JWKS issued by TrueFoundry.
TrueFoundry support provides the INTERNAL_JWT_JWKS material required to sign tokens within your environment.

For installation instructions, env vars, and SAML/OIDC examples, see External SSO (OIDC/SAML).

Both options support the same set of IdPs and protocols. The choice is about whether traffic flows through login.truefoundry.com or stays entirely within your environment.

Pick your identity provider

The guides below assume the default Option 1 flow (TrueFoundry Auth Server). Pick your IdP from the cards below — each guide covers SSO via SAML or OIDC and, where supported, SCIM provisioning.

Microsoft Entra ID (Azure AD)

SAML, OIDC, and SCIM with Microsoft Entra ID (formerly Azure AD). SCIM requires SAML.

Okta

SAML, OIDC, and SCIM with Okta Workforce Identity. SCIM requires SAML.

Google Workspace

SAML and OIDC single sign-on with Google Workspace.

JumpCloud

SAML, OIDC, and SCIM with JumpCloud.

OneLogin

SAML, OIDC, and SCIM with OneLogin.

Auth0

SAML and OIDC with an Auth0 application.

Keycloak

OIDC with a self-hosted Keycloak realm.

Microsoft AD FS

SAML and OIDC with on-premises Active Directory Federation Services.

PingOne / PingFederate

SAML and OIDC with Ping Identity (PingOne and PingFederate).

Rippling

SAML and OIDC with Rippling’s custom SSO app.

If your IdP isn’t listed above, follow the generic guides for Custom SAML or Custom OIDC. Any IdP that speaks SAML 2.0 or OpenID Connect will work.

Configure SSO in TrueFoundry

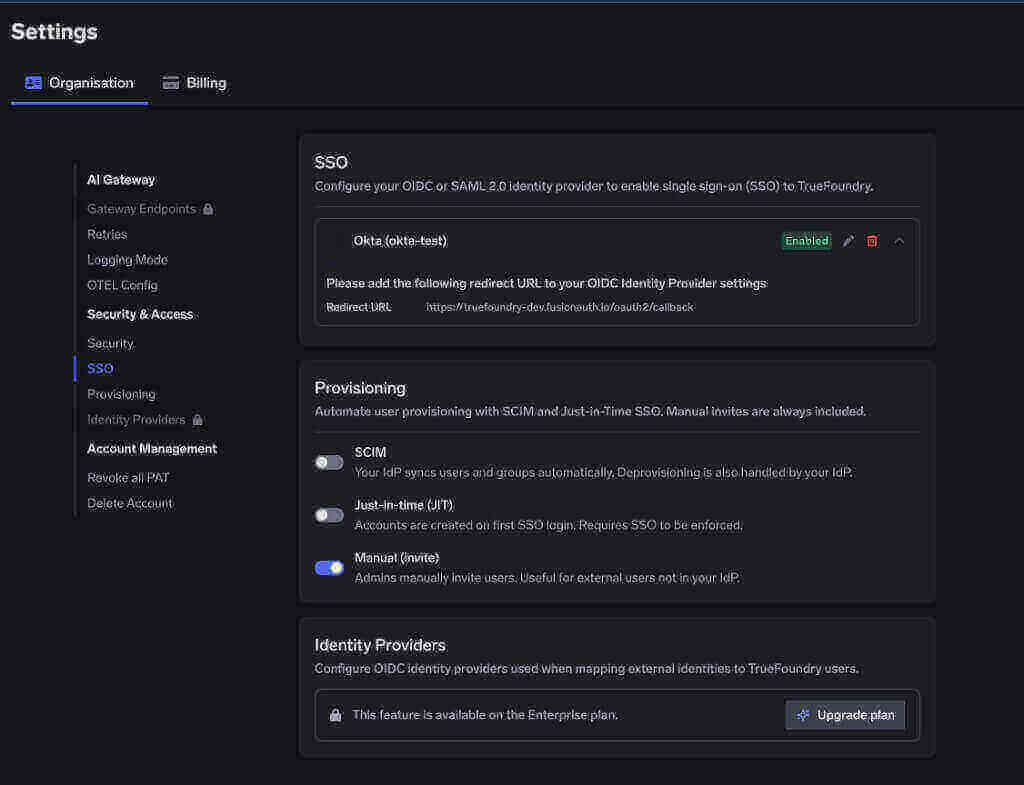

Go to Platform → Settings → SSO, toggle Enabled, pick your SSO Provider, and choose OIDC or SAML v2 under Authentication Configuration.

The exact fields depend on the protocol you pick. The provider-specific guides above walk through every screen, but the high-level field mapping is the same everywhere:

OIDC
SAML v2

Create a client application in your IdP

Set the redirect/callback URL to https://login.truefoundry.com/oauth2/callback.

Fill in the TrueFoundry SSO form

Client ID — application/client ID issued by your IdP.
Client Secret — client secret value generated for the application.
Issuer URL — your IdP’s OIDC issuer (e.g. https://<tenant>.okta.com or https://login.microsoftonline.com/<tenant-id>/v2.0).
Discover endpoints — leave enabled to auto-fetch metadata from <Issuer URL>/.well-known/openid-configuration. If your IdP doesn’t expose a discovery document, disable this and manually fill in Authorization Endpoint, Token Endpoint, UserInfo Endpoint, and JWKS Endpoint.
Scopes (optional) — space-separated additional scopes. Defaults to openid email.

Create a service provider in your IdP

When entering ACS / Single sign-on URL or Audience / SP Entity ID, use placeholder values for now — you’ll replace them after saving in TrueFoundry.

Fill in the TrueFoundry SSO form

Identity Provider Endpoint (IdP SSO URL) — your IdP’s SAML login URL.
X.509 Certificate (PEM) — the IdP signing certificate used to verify SAML responses.

Update the IdP configuration

After you save your SAML configuration:

Replace the placeholder ACS / Single sign-on URL with the actual Callback URL shown in TrueFoundry.
Replace the placeholder Audience / SP Entity ID with the actual Issuer shown in TrueFoundry.

Simplify claim configuration with attribute mapping (optional). SAML IdPs often emit attributes like http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress. Add aliases on the IdP side so TrueFoundry’s defaults work without touching advanced settings:

Attribute name	Map to	Purpose
`sub`	Your IdP’s user ID field	User’s unique identifier
`email`	Your IdP’s email field	User’s email address
`groups`	Your IdP’s groups field (if supported)	Group memberships for RBAC

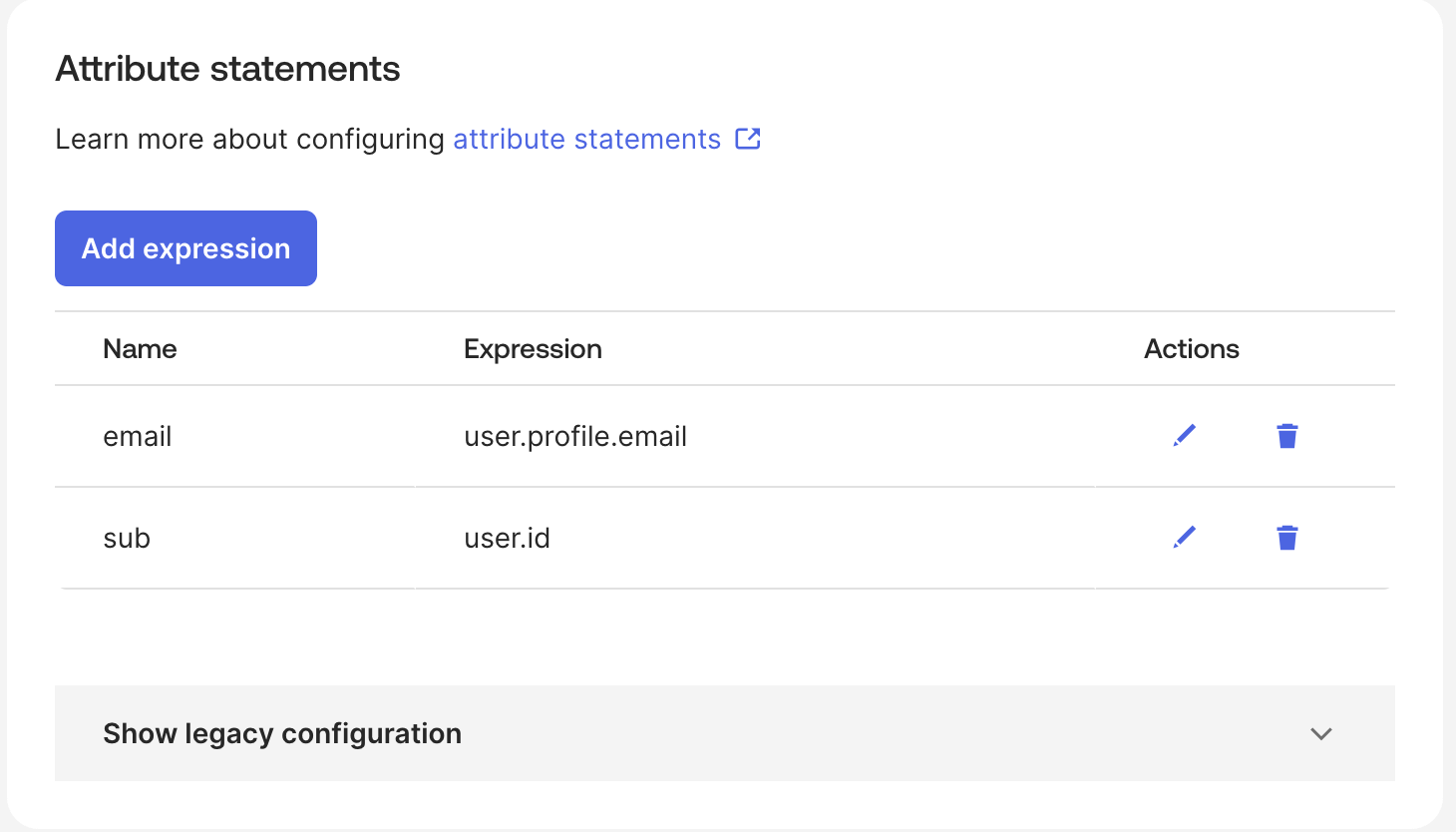

SAML attribute mapping configuration — Example: configuring attribute mappings in Okta

Values you'll exchange with your IdP (full reference)

Every integration involves swapping a small set of values between TrueFoundry and your IdP. Knowing where each value lives in TrueFoundry up front makes the provider-specific guides much easier to follow.

From TrueFoundry → your IdP

TrueFoundry generates these once you create the SSO configuration under Platform → Settings → SSO. They’re shown in the SSO configuration panel after you click Save.

OIDC
SAML v2

TrueFoundry value	What your IdP calls it
Callback URL	Redirect URI / Sign-in redirect URI / Reply URL

The callback URL is always the same:

https://login.truefoundry.com/oauth2/callback

TrueFoundry value	What your IdP calls it
Callback URL	ACS URL / Assertion Consumer Service URL / Single sign-on URL / Reply URL
Issuer	SP Entity ID / Audience URI / Audience Restriction

Both values are shown in the SSO configuration panel after you save your SAML settings:

From your IdP → TrueFoundry

You collect these from your IdP’s admin console and paste them into the Configure Settings for SSO dialog at Platform → Settings → SSO.

OIDC
SAML v2

TrueFoundry field	From your IdP
Client ID	The application/client ID issued by your IdP
Client Secret	The client secret value generated for the application
Issuer URL	The OIDC issuer for your tenant
Discover endpoints	Leave enabled to auto-fetch the OIDC metadata
Scopes (optional)	Space-separated additional scopes. Defaults to `openid email`

TrueFoundry field	From your IdP
Identity Provider Endpoint	The IdP’s SAML SSO/login URL
X.509 Certificate	The IdP’s signing certificate (PEM) used to verify SAML responses

Advanced customizations (OIDC and SAML)

Click Show advanced fields in the SSO dialog to override defaults:

Button Text / Button Image URL — customize the SSO button on the TrueFoundry login screen.
Email Claim — claim/attribute carrying the user’s email. Defaults to email.
Unique ID Claim — claim/attribute carrying the user’s unique ID. Defaults to sub.

Wherever possible, configure your IdP to emit attributes named email, sub, and groups. With those names you don’t have to touch the advanced fields in TrueFoundry.

SCIM provisioning at a glance

For IdPs that support SCIM, you can automatically create, update, and deactivate TrueFoundry users from your IdP. SCIM works alongside SSO (OIDC or SAML).

Enable SCIM in TrueFoundry

Turn on SCIM under Settings → Security & Access → Provisioning.

Copy the SCIM Base URL and token from TrueFoundry

Expand the SSO configuration to view the SCIM URL, and click the key icon to generate a SCIM token. Keep both handy — you’ll paste them into your IdP.The token is shown only once at creation. Treat it like a password. If you lose it, generate a new one (which invalidates the previous token).

Configure your IdP

In your IdP’s SCIM/provisioning settings, set:

Base URL / Tenant URL to the SCIM URL from TrueFoundry.
Authentication to Bearer token.
Bearer Token / Secret Token to the SCIM token from TrueFoundry.

Then assign users and groups in the IdP and start provisioning. Within a few minutes, users and teams will appear in TrueFoundry.

For team-specific behaviour (group naming, role mapping, etc.), see Provision teams via SCIM.

SCIM is one of three provisioning modes TrueFoundry supports. If you’d rather create users on first login or invite them manually, see Just-in-time (JIT) and Invite-only.

Troubleshooting

Deleting an SSO configuration fails with “out of sync with the central auth server”

This SSO configuration is out of sync with the central auth server and could not be deleted automatically. Retry the delete request with the force flag set to true to remove the local configuration.

To remove the SSO configuration anyway, retry the delete with the force=true query parameter:

curl -X DELETE \
  'https://<your-control-plane-host>/api/svc/v1/settings/<settings-id>?force=true' \
  -H 'Authorization: Bearer <your-api-key>'

<your-control-plane-host> — your TrueFoundry control plane URL.
<settings-id> — the id of the SSO settings entry (the id field returned by the settings list API).
<your-api-key> — a TrueFoundry API key belonging to a user/account with the Manage Settings permission on the tenant.

With force=true, TrueFoundry ignores the central auth server cleanup failure and deletes the SSO configuration.

Before you start

You’ll need admin access to both TrueFoundry and your IdP.
Each tenant has its own SSO and provisioning configuration — make sure you’re configuring the correct tenant.
For Option 1, TrueFoundry’s authentication server is login.truefoundry.com for all customers and the OIDC redirect/callback URL is always https://login.truefoundry.com/oauth2/callback.
For Option 2, work with TrueFoundry support to obtain the INTERNAL_JWT_JWKS material and follow External SSO (OIDC/SAML) at install time.
Once SSO is saved, click the row in the SSO list to view the Callback URL and Issuer that you’ll feed back into your IdP for SAML.

Pick a provider from the cards above to get started.

​Deployment models

Option 1 — TrueFoundry Auth Server + your IdP

Option 2 — Direct IdP (no TrueFoundry Auth Server)

​Option 1 — TrueFoundry Auth Server + your IdP (default)

​Option 2 — Direct IdP integration (no TrueFoundry Auth Server)

​Pick your identity provider

Microsoft Entra ID (Azure AD)

Okta

Google Workspace

JumpCloud

OneLogin

Auth0

Keycloak

Microsoft AD FS

PingOne / PingFederate

Rippling

​Configure SSO in TrueFoundry

​From TrueFoundry → your IdP

​From your IdP → TrueFoundry

​Advanced customizations (OIDC and SAML)

​SCIM provisioning at a glance

​Troubleshooting

​Deleting an SSO configuration fails with “out of sync with the central auth server”

​Before you start

Deployment models

Option 1 — TrueFoundry Auth Server + your IdP (default)

Option 2 — Direct IdP integration (no TrueFoundry Auth Server)

Pick your identity provider

Configure SSO in TrueFoundry

From TrueFoundry → your IdP

From your IdP → TrueFoundry

Advanced customizations (OIDC and SAML)

SCIM provisioning at a glance

Troubleshooting

Deleting an SSO configuration fails with “out of sync with the central auth server”

Before you start
